The Impact of 3D Medical Animation in the Healthcare Industry

Medical animation is nearly always sold with statistics. Audiences are said to remember four-fifths of what they see, and most people are said to be visual learners. A minute of video is said to be worth a million words. None of those figures survives contact with the literature. The case for animation is real, but it is narrower, more conditional and considerably more interesting than the sales pitch.

What you will learn
  • Which widely quoted figures about visual learning are fabrications
  • What controlled trials report for clinicians and for patients
  • The narrow set of tasks for which three dimensions are worth paying for
What to unlearn
  • “People remember 80% of what they see and 10% of what they hear.” The percentages were never measured. They were attached to a diagram that carried no numbers at all, and a review of their use in medical education found no credible evidence behind them.
  • “Animation is better than a static picture.” Across 140 comparisons the pooled advantage is small, and the early studies that appeared to show large gains were comparing unequal material.

What this article covers

This article asks a single question. What does three-dimensional medical animation actually do, and under what conditions does it do it?

Two bodies of evidence bear on that question, and they are rarely read together. One is the educational research on animated against static graphics, which is now thirty years deep. The other is the clinical trial literature on animations given to patients and to practitioners. The first explains why the second comes out the way it does.

A third body of material is also in circulation, and it is not evidence at all. It consists of retention percentages, learner-type proportions and processing-speed multiples, repeated so widely that they have acquired the appearance of fact. They are dealt with first, because they distort every decision made downstream of them.

Where this sits among the related articles

Figures inside a manuscript, and what their legends must carry, are covered in how to structure your research article. Cases where a table serves the reader better than any picture are covered in tables for a systematic review. Consent for identifiable clinical images is covered in writing an effective medical case report.

This article takes the moving image, which those three leave to it.

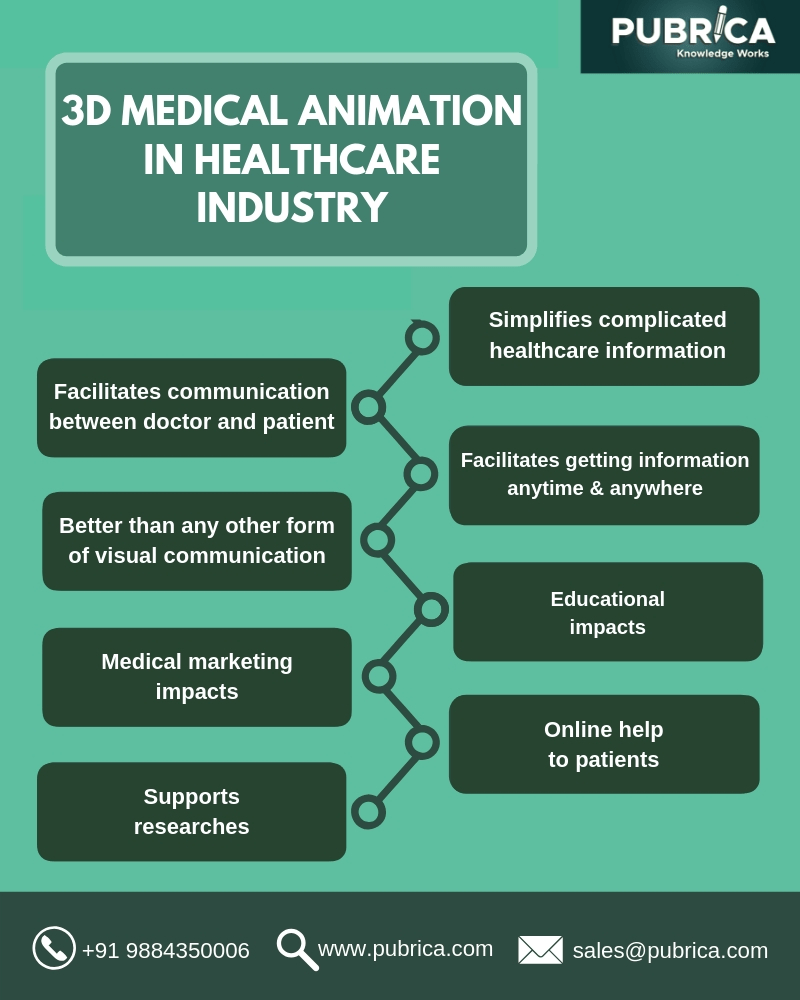

The Impact of 3D Medical Animation in the Healthcare Industry (infographic)

Provenance of the commonly quoted figures

Four claims do most of the work in any case made for medical animation. Each is worth tracing to its origin.

The retention percentages

The first claim is a ladder of percentages. People are said to remember a tenth of what they read, a fifth of what they hear, and four-fifths of what they see and do. The figures are usually credited to Edgar Dale and his Cone of Experience.

They do not come from him. A review of how the diagram has been used in medical education examined the original sources directly. Dale’s cone, it reports, “has no numbers or percentages, and no suggestion of retention of information”.1 The cone classifies teaching materials by how concrete or abstract they are. It was never a measurement of memory.

The percentages were added later and attributed backwards. The same review found that the figures differ from one source to the next, which is the signature of invention rather than measurement. Its verdict on the version that circulates today is blunt: the pyramid “is based on no credible evidence”.1 Dale’s own model, it adds, “is not based on empirical evidence of any kind”.1

The consequence of the retention ladder

The retention ladder does not merely overstate the benefit of visual material. It specifies a ranking, and that ranking is then used to choose a format. A communications budget allocated on the strength of an 80% figure is allocated on a number that nobody ever measured.

The visual-learner proportion

The second claim is that most people are visual learners, usually stated as a proportion somewhere near two-thirds. The implication is that visual material suits the majority by disposition.

This belongs to the learning-styles literature, and that literature has not held up. A review of its standing in higher education states the position plainly. The use of learning styles “in all forms of education has been thoroughly and repeatedly discredited in the research literature”.2

The same review identifies why the idea persists. Surveying recent papers indexed in two major databases, it found that 89% endorsed learning styles either directly or by implication.2 The research literature itself has been transmitting the error.

There is a further problem with the claim, independent of the evidence. A visual learner is a property attributed to the audience. Health communication is better understood as a property of the organisation that produces it, and the federal definitions now say so explicitly. Organisational health literacy is defined as “the degree to which organizations equitably enable individuals to find, understand, and use information and services”.14 That definition was revised deliberately, since the earlier wording placed the capacity in the individual, and the committee that redrafted it judged that responsibility extends to organisations and professionals.14

The processing-speed and word-equivalent figures

The third and fourth claims are quantitative in form only. One holds that images are processed some sixty thousand times faster than text. The other holds that a minute of video is worth roughly 1.8 million words.

Neither figure has a study behind it that can be located. No peer-reviewed source states either, and no study is cited when they appear. They are marketing formulations that acquired decimal points through repetition.

The word-equivalent figure is not even coherent as a measurement. It presupposes an exchange rate between images and words, and no such rate exists. Comprehension depends on what the image shows and what the words say.

The pattern across all four

Each claim asserts that visual material is categorically superior, in a fixed ratio, for everyone. The research literature says something quite different. It reports modest average effects, heavily dependent on the task, the design and the learner. That is a less saleable finding, and a considerably more useful one.

Figures: assessing claims about medical animation

Figure 1 sets four widely repeated claims about visual learning against what the published literature reports. Figure 2 offers three questions for deciding whether animation is the right medium for a particular message. They help authors and communicators use animation where the evidence supports it.

Figure 1 · Four claims, and what the literature reports

Each claim is quoted in the form it usually takes. Each finding comes from a source listed at the foot of this article.

“People remember 80% of what they see.”Never measured. The source diagram carries no numbers.“Two-thirds of people are visual learners.”Learning styles: discredited in the literature.“Images are processed 60,000 times faster.”No study states this. The figure cannot be traced.“Animation beats a static picture.”Pooled across 140 comparisons: a small effect, g = 0.23.Not one of the four survives being traced to a source.The fourth is the only one that was ever measured at all.

What to look for. The fourth row differs from the first three in kind, not only in degree. The first three claims have no measurement behind them of any sort. The fourth was measured, repeatedly, and the measurement simply came out much smaller than the claim. Treating the four as equivalent misses the point: animation does help, on average, by a margin that no one would describe as transformative.

Schematic. The claims are quoted in the forms most often encountered rather than from any single named publication.

Figure 2 · Whether an animation is the right instrument

Three questions, in order. A no at any point means something cheaper will do the same work or better.

Is it a change over time?a mechanism or a procedureotherwisea still image will doIs the structure truly 3-D?spatial relations, not a chartotherwisetwo dimensions sufficeIs the goal knowledge?trials show knowledge gainsotherwiseattitudes rarely shiftThen an animation is justified.It must still match the idea and be legible at a glance.Two of the three gates are about the subject matter.The third is about what the audience is meant to do.

What to look for. The third gate is the one most often skipped, and it is the one the trial evidence speaks to most directly. Animations given to patients improve what those patients know. They have not reliably changed what patients feel or what patients do. A brief commissioned to change behaviour is a brief the instrument has not been shown to satisfy.

Schematic. The final line restates the two design principles proposed by Tversky and colleagues, which are set out in full later in this article.

Findings of the controlled trials

Two systematic reviews published in 2022 by overlapping teams cover the trial evidence. One addresses practitioners and students, while the other addresses patients and the general public. Read together they give a consistent picture.

Trials in clinicians and students

The practitioner review identified thirteen randomised or quasi-randomised trials, with 1,068 participants in total.5 Eleven enrolled students and two enrolled qualified practitioners. Sample sizes ran from 22 to 239, with a median of 60.5

Knowledge was the primary outcome, measured in ten trials. Animations produced greater knowledge in eight of them.5 Two trials followed participants further out, at one month and at four months, and the gains persisted.5

Skills or behaviours were measured in three trials, and animations improved them in two.5 Attitudes were measured in five trials, of which three favoured animation, one found no difference and one found a worse outcome.5

The quality of that evidence is the part usually omitted. Overall risk of bias was high in ten of the thirteen trials and raised some concerns in the remaining three.5 Only one trial reported a sample size calculation. Only four of thirteen supplied a link to the animation they tested, which leaves the intervention itself largely unexaminable.5

The authors draw the conclusion that follows from this. The evidence base is too small to support routine adoption, and they state that “it would be imprudent to recommend their routine use at this stage”.5 They are equally clear about the other side. On knowledge and on skills, “no study indicated worse outcomes”.5

Trials in patients and the public

The patient review is considerably larger. It identified thirty-eight trials across nineteen countries, with 5,646 participants.6 Most of the interventions were cartoon animations rather than photorealistic ones.6

The pattern across outcome types is the finding that matters. Knowledge was assessed in thirty studies, and animation was favoured in nineteen.6 Attitudes and cognitions were assessed in twenty-one. Six favoured animation, fourteen found no effect, and one found animation less effective than standard care.6 Behaviours were assessed in nine studies, with positive results in four.6

The asymmetry across outcomes

Animation moves knowledge. It does not reliably move attitudes, and it does not reliably move behaviour. Two-thirds of the attitude outcomes in the larger review showed no effect at all. A commissioning brief written around persuasion is asking the instrument for something the trials have not demonstrated it delivers.

Risk of bias was high in eighteen studies and low in only four.6 The reviewers could not pool the results, because the studies were too heterogeneous for meta-analysis, and no effect sizes are reported.6 Their summary is appropriately hedged, and the findings indicate “mostly positive effects on knowledge, particularly in the short-term”.6

Worked example: coronary artery disease

A 2026 review narrows the question to one clinical population. It identified five randomised trials in coronary artery disease, with 1,466 participants.7 Three used three-dimensional video, one used two-dimensional video, and one used whiteboard animation. Each was added to standard care rather than substituted for it.7

Knowledge was assessed in four trials and improved in all four, although one of those showed a benefit on only one of four knowledge items.7 Anxiety was assessed in four trials and fell in two.7 Satisfaction improved in both trials that measured it.7

The limitations are instructive, since four of the five trials were single-centre, three enrolled fewer than a hundred participants each, and the longest follow-up was seven weeks.7 Heterogeneity in the animations and the comparators prevented any pooling.7 The authors conclude that animations “show potential for their effects on knowledge and anxiety”.7

Potential is the correct word, and it is a long way from the claims with which this article opened.

Animation compared with static graphics

The intuition behind animation is that a moving process is best shown moving. That intuition has been tested for three decades, and it holds only in part.

Confounding in the early evidence

A review published in 2002 examined the studies then available comparing animated with static graphics. Its finding was that animation rarely helped beyond an equivalent static display. The apparent successes, it argued, were traceable to two artefacts.3

The first is unequal content, since in many comparisons “the animated graphics convey more information” than the static versions set against them.3 Fine-grained intermediate steps appeared in the animation and were omitted from the still. The study then measured the extra information, not the motion.

The second is confounded procedure, because animation was often delivered alongside interactivity, a prediction task, or the graphic remaining available during testing, each of which improves learning independently.3

Two principles proposed in the same review

The same review proposed two tests for any graphic. Under the congruence principle, the external representation “should correspond to the desired structure and content of the internal representation”.3 Under the apprehension principle, it “should be readily and accurately perceived and comprehended”.3 An animation that is beautiful and fails either test has failed.

The pooled estimate

A later meta-analysis put a number on the question. It drew on fifty articles, sixty-one primary studies and 140 pairwise comparisons, with 7,036 participants in total.4

The pooled advantage of animation over static graphics was a Hedges’s g of 0.226, with a 95% confidence interval from 0.12 to 0.33.4 By the conventional rule of thumb that is a small effect. Heterogeneity was substantial, with an I2 of 78.4%.4

The effect is real, then, and it is modest. It is also inconsistent enough that the average conceals a great deal.

Moderator analysis

Two moderators reached significance, and one of them runs against expectation.

System-paced animations outperformed animations that gave the learner control over pacing. The system-paced subgroup reached a g of 0.309, and the difference between subgroups was significant.4 Handing the viewer a pause button did not help, on these data, and appeared to hurt.

The second moderator was the style of representation. Animations using iconic depictions, whether realistic, photorealistic or schematic, outperformed abstract ones such as formal notations.4 The iconic subgroup reached a g of 0.245.4

Prior knowledge was excluded from this analysis and deferred to separate work, so no inference about novices and experts follows from it.4

Cognitive load

Cognitive load theory supplies the mechanism for most of the above. Working memory is finite, and any demand that does not serve the learning goal competes with the demand that does.

Three effects bear directly on animation. The split-attention effect arises when a learner must divide attention across separate sources, which is wasted effort rather than learning.11 The redundancy effect arises when identical information is presented in several formats without adding understanding.11 Narration that reads on-screen text aloud is the textbook case.11

The third is the expertise reversal effect. Support that helps a novice “may become less effective as learners gain expertise”.11 An animation built for a patient and reused for a surgical team is not merely redundant for the team, and it may impede them.

Segmenting is the remedy most readily applied to animation. Large topics are broken into smaller meaningful units, with foundational concepts introduced before the sequence that depends on them.11

Evidence specific to three dimensions

Everything so far concerns animation in general. Three dimensions are a separate and more expensive decision, and the evidence for them is narrower.

Anatomy teaching

A meta-analysis published in 2024 pooled thirty-nine randomised trials of three-dimensional visualisation in anatomy learning, with 2,959 participants.8 Its outcomes were test scores and satisfaction, with time taken and enjoyment as secondary measures.8

Satisfaction and enjoyment favoured three-dimensional presentation, while the time taken to complete the tests did not fall.8

The sensitivity analysis is the informative part. Removing the studies from a single country left satisfaction and enjoyment significant, while the advantage on test scores and on time no longer reached significance.8 Meta-regression found that regional factors affected test scores, and the authors note a tendency toward positive results in one regional subset.8

What a sensitivity analysis is for

A result that disappears when one subset of studies is removed is not necessarily wrong. It is, however, fragile, and fragility is information. The durable finding here concerns how learners feel about three-dimensional material. The finding about what they score is the one that moved.

Surgical planning

A randomised trial reported in 2025 took a different question. It asked whether three-dimensional models change what clinicians understand from imaging.9

Ninety-one participants took part, comprising forty surgeons, ten radiologists and forty-one students. Each reviewed six clinical cases of liver malignancy. Standard high-resolution two-dimensional computed tomography was compared against standardised three-dimensional virtual models and three-dimensional printed models.9

Both three-dimensional formats significantly improved identification of tumour location, understanding of spatial relationships with the adjacent liver and portal veins, and clinical decision-making.9 Virtual and printed models did not differ significantly from one another.9

One subgroup result deserves attention, because surgeons and students identified tumour location and spatial relationships more accurately with the three-dimensional models, while radiologists did not.9

That pattern is consistent with the expertise reversal effect described earlier. Radiologists already reconstruct three-dimensional anatomy from two-dimensional slices as a matter of daily practice. A representation that supplies the reconstruction has little to give a reader who performs it unaided.

Conditions under which depth contributes

A pattern emerges from putting these alongside the general animation evidence.

Three dimensions pay where the task is irreducibly spatial. Judging the relation of a tumour to a vessel is such a task, because the answer changes with the viewing angle. A flat projection discards precisely the information the question turns on.

Three dimensions pay much less where the subject is a sequence, a category or a quantity. A drug mechanism expressed as a chain of events is a sequence. A comparison of two treatment options is a quantity. Neither becomes clearer for being rendered in depth, and both acquire extraneous detail in the process.

The temptation runs the other way. Depth, lighting and camera movement are the most visible signs of effort in a finished piece. They are also the cheapest things to add once the modelling is done. Neither fact makes them the active ingredient, and the evidence locates that elsewhere.

Accuracy and representation

An animation makes claims about the world. It asserts that a process looks like this, proceeds in this order, and happens at this speed. Those assertions are rarely reviewed with the care given to a sentence making the same claim.

Simplification, complexity and uncertainty

Work on molecular animation has set out the problem most precisely. Visuals that trade accuracy for clarity can leave a viewer with a shallow grasp of the concept. Learners “may recall a sequence of events but retain only a superficial understanding” of it.10

The opposite failure is equally available. Detail added for visual richness, with no relation to the learning goal, misleads in its own way. Explanations “that introduce extraneous complexity not relevant to the learning goal may be equally misleading”.10

There is a third and subtler distortion. Molecular processes are dominated by randomness, diffusion and crowding, and conventional depictions omit all three.10 A clean animation of a protein docking neatly with its target shows an event that does not occur that way. The viewer acquires a mechanism and loses its stochastic character.

The rendering of uncertainty

A rendered sequence looks equally confident whether the mechanism is settled or contested. Prose can hedge, and a figure legend can record a caveat. A camera move through a cell cannot. The medium has no grammar for doubt, which means the doubt has to be carried somewhere else, deliberately.

The authors tested a response to this. They built versions of increasing visual complexity, including structural flexibility, Brownian motion, molecular crowding and water.10 The most complex version produced the strongest gains on advanced questions at immediate post-test. Those particular gains did not persist to delayed post-test.10

They also note a limitation that reads as a lesson. Their animations carried no narration, which constrained their educational value.10 Visual accuracy and verbal explanation are not substitutes for one another.

Coverage of journal guidance

Authors preparing figures for a manuscript have a defined standard to work to. Titles and detailed explanations “belong in the legends—not on the illustrations themselves”.12 Labels must be “large enough to remain legible when the figure is reduced for publication”.12 Photomicrographs “should have internal scale markers”, and the method of staining must be identified.12

Reuse is governed too, and permission for a previously published figure “is required irrespective of authorship or publisher except for documents in the public domain”.12 Supplementary electronic material is not exempt from scrutiny. It is to be “sent for peer review simultaneously with the primary manuscript”.12

Two silences in that guidance are worth noting. The section on preparing a manuscript does not mention video anywhere. It also does not address image manipulation or enhancement, beyond requiring that before-and-after photographs be taken under matching lighting.12

No reporting guideline covers animation as a study output. An animation submitted as supplementary material is therefore reviewed, but against no checklist written for it.

Accessibility provisions

An animation carries much of its meaning in pictures, which is the point of commissioning one. That is also what makes it inaccessible by default.

Three provisions address this, and captions supply “a text version of the speech and non-speech audio information” needed to follow the content.13 Audio description supplies the visual information that a viewer who cannot see the screen needs in order to understand it.13 A descriptive transcript covers both, and is “required to provide video content to people who are both Deaf and blind”.13

The practical point concerns sequence rather than provision. Description works best when integrated, which means writing it into the script before anything is filmed or rendered.13 Retrofitting description to a finished animation means squeezing it into whatever gaps the edit happens to have left.

Sign language is a separate provision, to be supplied where the audience needs it, since for many Deaf people a signed language is their first language.13

Common mistakes

Faults in commissioned medical animation, and what each costs
FaultStageWhat it costsThe remedy
The brief asks the animation to change behaviourBriefThe measure of success is one the trials do not supportState a knowledge objective, and measure knowledge
Three dimensions chosen for a sequence or a quantityBriefCost and render time with no mechanism of benefitReserve depth for tasks whose answer changes with viewing angle
The static alternative is never costedBriefNo baseline against which the animation can be judgedSpecify the still image or diagram that would be the fallback
Narration reads the on-screen text aloudScriptRedundancy consumes working memory without adding meaningLet the words carry what the picture cannot, and no more
Visual detail added for richnessDesignExtraneous complexity misleads as surely as oversimplificationJustify every element against the stated learning objective
Uncertainty rendered as smooth certaintyDesignA contested mechanism is presented as settled factCarry the caveat in narration or caption, since the image cannot
One version reused across novice and expert audiencesReuseExpertise reversal: what helps the novice impedes the expertCut separate versions, or accept that one audience is being served
Description and captions retrofitted after the editDeliveryDescription is squeezed into whatever gaps the edit leftWrite integrated description into the script before rendering
The animation is not published with the study that used itPublicationThe intervention cannot be examined, replicated or appraisedDeposit the animation and cite its location in the methods
Effectiveness asserted from the retention percentagesEvaluationA claim that cannot be defended if a reviewer checks itCite the trial literature, including what it failed to show

The last row is the one most often inherited rather than chosen. The percentages are so widely repeated that they are rarely recognised as a claim requiring support.

Take-home message

The familiar statistics are not evidence, because the retention percentages were never measured, the learning-styles proportion rests on a discredited construct, and the processing-speed figures cannot be traced. What remains after they are set aside is a genuine but modest finding. Animation outperforms static graphics by a small margin on average. Animations given to patients improve what those patients know, mostly in the short term, while leaving attitudes and behaviour largely unchanged. Three dimensions add value where the task is irreducibly spatial and little elsewhere. The instrument is worth using, and worth using for the things it has been shown to do.

How to apply this to your work

In order, from brief to delivery
  1. State a knowledge objective, since that is the outcome the trial evidence supports.
  2. Cost the static alternative first, and keep it as the comparator the animation has to beat.
  3. Reserve three dimensions for spatial tasks whose answer changes with the viewing angle.
  4. Name the audience’s prior knowledge in the brief, and commission separate versions where it differs.
  5. Strip out detail that serves no stated objective, however impressive it looks.
  6. Decide where uncertainty will be carried, because the image itself cannot carry it.
  7. Write integrated audio description into the script before anything is rendered.
  8. Deposit the animation and cite its location wherever it is used as an intervention in research.

Common questions

Do people really remember 80% of what they see?

No. The percentages are usually credited to Edgar Dale’s Cone of Experience, and a review of their use in medical education found that the cone “has no numbers or percentages, and no suggestion of retention of information”.1 The figures were attributed backwards and vary between sources. The same review concludes that the pyramid “is based on no credible evidence”.1

Are most people visual learners?

The claim rests on learning styles, and that construct has not survived testing. Its use “in all forms of education has been thoroughly and repeatedly discredited in the research literature”.2 The belief persists partly because the academic literature keeps restating it: 89% of recent indexed papers surveyed endorsed learning styles directly or by implication.2

Is animation better than a static diagram?

On average yes, by a small margin. A meta-analysis of 140 comparisons across 7,036 participants found a Hedges’s g of 0.226, with a confidence interval from 0.12 to 0.33.4 Heterogeneity was high, so the average conceals wide variation. Earlier studies that appeared to show larger effects often compared animations carrying more information than the stills set against them.3

Does animation work better for patients or for clinicians?

The evidence is stronger in volume for patients and weaker in quality for both. Across thirty-eight patient trials, knowledge favoured animation in nineteen of the thirty studies that measured it.6 Across thirteen practitioner trials, knowledge favoured animation in eight of ten.5 Risk of bias was high in most trials on both sides.56

Can an animation change what patients do?

That has not been demonstrated reliably. Behaviours were assessed in nine of the thirty-eight patient trials, with positive results in four.6 Attitudes and cognitions fared no better: of twenty-one studies, fourteen found no effect and one found animation less effective than standard care.6 Knowledge is the outcome the evidence supports.

Should the viewer be able to pause and replay?

The meta-analytic finding runs against intuition here. System-paced animations outperformed those giving the learner control, reaching a g of 0.309, and the subgroup difference was significant.4 This concerns learner control over pacing within an instructional comparison, and does not speak to playback controls in general.

Does a journal treat an animation differently from a figure?

Not in any documented way. The ICMJE section on preparing a manuscript sets out requirements for figures, legends, photomicrographs and permissions, but does not mention video at all.12 Supplementary electronic material is to be “sent for peer review simultaneously with the primary manuscript”.12 An animation is therefore reviewed, but against no checklist written for the medium.

What does an animation need in order to be accessible?

Captions, giving “a text version of the speech and non-speech audio information”; audio description for visual content a viewer cannot see; and a descriptive transcript, which is “required to provide video content to people who are both Deaf and blind”.13 Description is best integrated, which means writing it into the script before filming or rendering.13

Declared interest: Pubrica provides medical writing and scientific illustration support commercially. Nothing on this page should be read as suggesting that an animation is the right answer to a communication problem, or that production quality substitutes for a defensible objective. Where a still diagram would carry the same meaning, that is the cheaper and often the better instrument, and saying so is part of the advice.

References and sources

  1. Masters K. Edgar Dale’s Pyramid of Learning in medical education: a literature review. Medical Teacher. 2013;35:e1584–e1593. doi:10.3109/0142159X.2013.800636 read 21 October 2026 from a repository copy of the published article.View the full text
  2. Newton PM. The learning styles myth is thriving in higher education. Frontiers in Psychology. 2015;6:1908. doi:10.3389/fpsyg.2015.01908 read 21 October 2026, in full.View the full text
  3. Tversky B, Morrison JB, Betrancourt M. Animation: can it facilitate? International Journal of Human-Computer Studies. 2002;57(4):247–262. read 21 October 2026 from a university-hosted copy of the published article.View the full text
  4. Berney S, Betrancourt M. Does animation enhance learning? A meta-analysis. Computers & Education. 2016;101:150–167. doi:10.1016/j.compedu.2016.06.005 read 21 October 2026 from the authors’ copy at the University of Geneva; the bibliographic record was confirmed against the university’s open archive.View the full text
  5. Knapp P, Benhebil N, Evans E, Moe-Byrne T. The effectiveness of video animations in the education of healthcare practitioners and student practitioners: a systematic review of trials. Perspectives on Medical Education. 2022;11(6):309–315. doi:10.1007/s40037-022-00736-6 read 21 October 2026, in full.View the full text
  6. Moe-Byrne T, Evans E, Benhebil N, Knapp P. The effectiveness of video animations as information tools for patients and the general public: a systematic review. Frontiers in Digital Health. 2022;4:1010779. doi:10.3389/fdgth.2022.1010779 read 21 October 2026, in full.View the full text
  7. Knapp P, Sridhar P, Wilkinson C. How effective are video animations for reducing anxiety and informing patients with CAD? A systematic review. British Journal of Cardiology. 2026;33:80. doi:10.5837/bjc.2026.032 read 21 October 2026, in full.View the full text
  8. Wang J, Li W, Dun A, Zhong N, Ye Z. 3D visualization technology for learning human anatomy among medical students and residents: a meta- and regression analysis. BMC Medical Education. 2024;24. doi:10.1186/s12909-024-05403-4 read 21 October 2026 from the Directory of Open Access Journals record; the figures cited here are those the abstract reports.View the record
  9. Riediger C. Three-dimensional visualization helps surgeons to make surgical decision: the 3D-ViDru trial, a randomized trial. Hepatobiliary & Pancreatic Diseases International. 2025;25(1):52–61. doi:10.1016/j.hbpd.2025.12.003 read 21 October 2026; the figures cited here are those the abstract reports.View the record
  10. Jenkinson J, McGill G. Visualizing protein interactions and dynamics: evolving a visual language for molecular animation. CBE—Life Sciences Education. 2012;11(1):103–110. doi:10.1187/cbe.11-08-0071 read 21 October 2026, in full.View the full text
  11. Rana K, Alford S, Moore A, Chimoriya R. Cognitive load theory-informed curriculum design in health sciences education. Encyclopedia. 2026;6(5):102. doi:10.3390/encyclopedia6050102 read 21 October 2026, in full.View the full text
  12. International Committee of Medical Journal Editors. Recommendations for the Conduct, Reporting, Editing, and Publication of Scholarly Work in Medical Journals: preparing a manuscript for submission to a medical journal. read 21 October 2026, in full.View the section
  13. W3C Web Accessibility Initiative. Making audio and video media accessible. Education and Outreach Working Group. First published September 2019; updated 17 September 2024. read 21 October 2026.View the guidance
  14. Office of Disease Prevention and Health Promotion, US Department of Health and Human Services. History of health literacy definitions. Healthy People 2030. read 21 October 2026.View the definitions

Two claims discussed in this article carry no reference, because none could be found. The assertion that images are processed sixty thousand times faster than text, and the assertion that a minute of video is worth some 1.8 million words, do not appear in the peer-reviewed literature. Neither is accompanied by a citation in the places it is repeated.

How to cite this article

Pick your referencing style and copy it. Your university or target journal may vary the punctuation — check its guide if it has one.

Pubrica Academy. (2026, October 21). The Impact of 3D Medical Animation in the Healthcare Industry. Pubrica. https://pubrica.com/academy/medical-writing/the-impact-of-3d-medical-animation-in-the-healthcare-industry/
Pubrica Academy. “The Impact of 3D Medical Animation in the Healthcare Industry.” Pubrica, 21 Oct. 2026, pubrica.com/academy/medical-writing/the-impact-of-3d-medical-animation-in-the-healthcare-industry/.
Pubrica Academy (2026) The Impact of 3D Medical Animation in the Healthcare Industry. Available at: https://pubrica.com/academy/medical-writing/the-impact-of-3d-medical-animation-in-the-healthcare-industry/ (Accessed: 21 October 2026).
Pubrica Academy. “The Impact of 3D Medical Animation in the Healthcare Industry.” Pubrica. October 21, 2026. https://pubrica.com/academy/medical-writing/the-impact-of-3d-medical-animation-in-the-healthcare-industry/.
Pubrica Academy, ‘The Impact of 3D Medical Animation in the Healthcare Industry’ (Pubrica, 21 October 2026) <https://pubrica.com/academy/medical-writing/the-impact-of-3d-medical-animation-in-the-healthcare-industry/> accessed 21 October 2026.
Pubrica Academy. The Impact of 3D Medical Animation in the Healthcare Industry [Internet]. Pubrica; 2026 Oct 21 [cited 2026 Oct 21]. Available from: https://pubrica.com/academy/medical-writing/the-impact-of-3d-medical-animation-in-the-healthcare-industry/
[1] Pubrica Academy, “The Impact of 3D Medical Animation in the Healthcare Industry,” Pubrica, Oct. 21, 2026. [Online]. Available: https://pubrica.com/academy/medical-writing/the-impact-of-3d-medical-animation-in-the-healthcare-industry/
@misc{pubrica_anim_2026, author = {{Pubrica Academy}}, title = {The Impact of 3D Medical Animation in the Healthcare Industry}, year = {2026}, month = {oct}, day = {21}, howpublished = {\url{https://pubrica.com/academy/medical-writing/the-impact-of-3d-medical-animation-in-the-healthcare-industry/}}, note = {Accessed: 2026-10-21} }

This article is written to be learned from. Cite it if you are referring to what it says; if you are using the evidence behind it, cite the sources listed above instead.

Medical animation commissioning checklist

Work through these before the brief is signed off.

THE BRIEF
[ ] The objective is stated as knowledge, not attitude or behaviour
[ ] The audience is named, including its prior knowledge
[ ] The static alternative is specified and costed as the comparator
[ ] A reason is given for three dimensions, beyond appearance
[ ] The question the viewer should be able to answer afterwards is written down

IS AN ANIMATION THE RIGHT INSTRUMENT
[ ] The subject is a change over time, not a category or a quantity
[ ] Its spatial structure changes meaning with the viewing angle
[ ] A still diagram has been drafted and found insufficient
[ ] The same material is not already covered by an existing asset

SCRIPT AND DESIGN
[ ] Narration does not read on-screen text aloud
[ ] Every visual element traces to the stated objective
[ ] Large topics are segmented into units that stand alone
[ ] Foundational concepts are introduced before the sequence using them
[ ] Where the mechanism is contested, the caveat is carried in words
[ ] Randomness or variability is shown where it is part of the science
[ ] Nothing depends on colour alone

ACCURACY
[ ] A subject-matter expert has reviewed the storyboard, not only the final cut
[ ] Scale is stated or made visible where it matters
[ ] Speed and sequence are checked against a cited source
[ ] Simplifications are listed, with the reason for each

ACCESSIBILITY
[ ] Captions cover speech and non-speech audio
[ ] Audio description is integrated, written into the script before rendering
[ ] A descriptive transcript is produced, covering audio and visual content
[ ] Sign language is provided where the audience needs it
[ ] Playback does not rely on automatic start or on sound alone

PUBLICATION AND REUSE
[ ] Permission is held for any previously published material reused
[ ] Figure legends carry titles and explanations, not the illustration
[ ] Supplementary material is submitted with the manuscript for review
[ ] The animation is deposited and its location cited where used in research
[ ] Separate versions exist for audiences of differing expertise
PA
Pubrica Academy

Written and maintained by the subject matter experts of Pubrica who do this work. Articles are revised when the standard underneath them moves, and each one carries the date it was last checked against its sources.

How Pubrica helps

We help you decide whether an animation is the right instrument for what you are explaining. We write briefs and scripts that state a testable objective, and check scientific accuracy at storyboard stage rather than after the render.

Explore

Related reading in the Academy.

Picked from the same sub-topic and category as this piece, newest first.

Find something else

Search the rest of the Academy.

Open with no account. Type what you are working on, or open the full library to filter by category, sub-topic or resource type.

Get a free quote

Regulations

Check your project against this rule

  1. 1Your work
  2. 2Your details
  3. 3Send
What do you need?

Material you send is held under signed confidentiality, with access limited to the assigned team and encrypted transfer. It is not used to train anything and is not passed to third-party tools. Ask for the agreement before you send anything you would rather cover first.
