Artwork Preparation Service
Pubrica prepares scientific figures, illustrations and graphical abstracts for researchers, clinicians, R&D teams and publishers, rebuilt to your target journal’s technical specification. Submission portals check resolution, colour space, file type, type size and line weight automatically, and a figure that fails any of these checks stops the upload. Our scientific designers and editors deliver compliant print files with editable sources for $15 per image, with free reformats to the same journal for 60 days.
At or above the required resolution2 of 6
Type legible at printed width3 of 6
Correct colour space and file type1 of 6
Panel letters, units and scale bars present4 of 6
After rebuild, to the journal’s specification6 of 6
Audited → rebuilt 3d → your revisions → upload accepted
- $15 per image
- 2 images a day
- Free reformats for 60 days
- Editable source returned
Service Scope
Publication-Ready Figures for Life Sciences and Pharmaceutical Research
A scientific designer and a scientific editor work on the same file. The designer applies the journal’s specification, and the editor confirms that the figure still represents your data accurately.
Why figures are rejected at upload
Figure checks are automated, run at upload and often produce error messages that do not identify the actual problem. Authors who attempt to fix the files in unfamiliar software can make them worse, for example by enlarging a bitmap, flattening a vector or re-saving a JPEG. Specialist preparation with the right tools resolves these issues efficiently.
Types of Artwork Services
Four Types of Scientific Artwork Services
Formatting an existing figure and creating a new one are different tasks, priced and scheduled separately.
Figure Specification Checker
Five Common Figure Faults Flagged by Journal Production Teams
These faults are unrelated to your science, and all are checked before an editor reads the manuscript. Select a fault to see its effect on the same figure and how we correct it.
✗As supplied
✓Publication-ready
Fault 1 of 5
Resolution
A figure pasted from a screen has roughly 96 pixels per inch. Printed at column width it holds about a third of the detail the page can show, and the portal usually rejects it automatically. Upscaling in software does not help, because the detail was never captured.
Journal requirement
300 dpi for photographs and halftones, 600 dpi or more for line art and graphs, measured at the final printed width
Typically supplied
A screenshot or a chart copied out of a spreadsheet, typically 96 dpi and already compressed
Our correction
Rebuilt from your source data as vector artwork, which is resolution-independent, then exported to the journal’s requirements
The figure is drawn in your browser and the fault is applied to the left-hand copy, so you see the actual effect. Values are illustrative; your journal’s instructions for authors take precedence and vary between journals.
Who We Serve
Who We Support with Artwork Preparation
The technical specification is the same for every client group, but each group faces different challenges in meeting it.
Compliance and Standards
ICMJE, COPE and CONSORT Standards for Scientific Figures
Pubrica follows this guidance in all artwork projects. It is particularly relevant to figures, because an image can identify a patient and a figure can misrepresent a result.
International Committee of Medical Journal Editors (ICMJE)
Patient images require written consent, and a black bar across the eyes does not anonymise them. All identifiers in the image, such as a wristband, a tattoo, a date in a scan header or the file metadata, must be removed before a figure is submitted.
Committee on Publication Ethics (COPE)
COPE distinguishes clearly between preparing an image and altering it. Adjusting brightness across a whole panel is preparation; adjusting part of a panel, removing a band or splicing lanes is manipulation, and journals run forensic checks to detect it.
Consolidated Standards of Reporting Trials (CONSORT and SPIRIT)
The participant flow diagram is a required figure with defined boxes and numbers that must reconcile with the text. PRISMA and STROBE flow diagrams are built to the same standard.
Responsible Use of AI
Responsible Use of AI in Scientific Figure Preparation
Image generation is the most visible AI capability and carries the greatest risk in figure preparation. A generated cell, scan or apparatus that does not exist constitutes image fabrication, and journals now screen for it.
Why We Do Not Publish AI Accuracy Figures
Accuracy figures for AI tools are usually reported by the companies that sell them.
Pubrica therefore does not quote its own accuracy figure, because it would carry the same conflict of interest. Instead, we tell you which tool was used on your project, at which stage, and what a specialist changed afterwards.
How It Works
How Our Artwork Preparation Process Works
Our process has six stages, with a Pubrica designer and a scientific editor working on the same file throughout. Please send the editable original if you have it, as this simplifies every later stage.
Submit figures and target journal details
Send editable originals where they exist, such as the plotting file, the source data or the vector drawing, together with the target journal. A chart rebuilt from its data is more accurate than one recovered from a flattened image.
Audit against the specification
Each figure is measured against the journal’s current requirements: resolution at reproduction width, colour space, file type, dimensions, type size, stroke weight, panel lettering and naming. You receive the audit before work starts, so you can see what needs to be done.
Rebuilding, Redrawing or Vectorisation
Charts are rebuilt from source data as vector art, sketches and low-resolution images are redrawn, and photographic and imaging panels are corrected across the whole frame rather than in parts. Multi-panel figures are assembled with consistent alignment and spacing.
Scientific check against the manuscript
An editor reviews each figure alongside your text, checking that labels match the variables, numbers agree with the results, every panel is cited at first mention, legends explain the symbols rather than repeat the caption, and units are present.
Export to the Portal’s Requirements
Files are exported as TIFF, EPS, PDF or high-resolution JPEG as the journal requires, in the correct colour space and compression, sized to single or double column, named to the journal’s convention and checked against its upload limits. Editable source files are also returned to you.
Revisions for Sixty Days
Revision rounds within the agreed scope, and free reformats to the same journal for sixty days. If a reviewer asks for error bars, a different scale or a merged panel, the change is included at no extra cost.
Artwork Preparation Pricing: $15 per Image, Two Images per Day
Send your figures and name the target journal. Pubrica first returns an audit showing which checks each figure fails and why, then delivers the rebuilt files in the formats the portal accepts, with free reformats to that journal for sixty days.
Built to the publisher’s template where one exists, including Springer, Wiley, Elsevier, SAGE, BMJ and PLOS, and to the house specifications of titles such as the New England Journal of Medicine, Nature, The Lancet and JAMA, which are stricter than most and differ from each other.
Our Experts
Our Scientific Artwork Team
A named team of scientific designers, editors and subject specialists stays with your project from scoping to delivery. Your project coordinator introduces each team member by name before work begins.
Reviews the scientific content for accuracy and confirms that each conclusion is supported by the evidence. Each expert is matched to your field.
Designs figures, posters, abstracts and media that represent the data accurately and meet the specifications of the target journal or platform.
Checks the finished work independently against the agreed scope and the applicable checklist. Findings are logged and resolved before delivery.
Manages the timeline, keeps you informed at each stage and coordinates the team so that questions are answered and deadlines are met.
Sample Work
Artwork Preparation Deliverables: Sample Handover
Every Pubrica artwork project includes the files, the audit that justified the changes and the editable sources. Use the tabs to view each part.
Artwork handover
Original research · 6 figures · 3 tables
Rebuilt to one named journal · TIFF and EPS delivered · editable sources returned
Audit issued before any work beganApproved by you
6 figures rebuilt3 tables reset to the journal’s layout
- Resolution
- 600 dpi line art, 300 dpi halftones, at final printed width
- Colour
- CMYK for print; proofed in greyscale and for colour-vision deficiency
- Type
- One sans-serif face, 7 pt minimum at reproduction size, fonts embedded
- Strokes
- 0.5 pt floor, weights normalised across all panels
- Width
- 85 mm single column or 176 mm double, as each figure needs
- Panels
- Letters upper case, same position and size throughout
- Naming
- To the journal’s convention, checked against the portal’s size limits
- Print files
- 6 figures as TIFF and EPS, named for upload
- Review copy
- A single PDF of all figures at printed size, for co-authors
- Editable source
- AI and SVG for every rebuilt figure, so you own the artwork
- Tables
- Editable, formatted to the journal’s layout rules
- Captions
- Drafted or checked against the figure, supplied as text
- Audit
- What failed, against which line of the instructions, and what was done
- Revisions
- Free to the same journal for 60 days from delivery
Redacted extract · client and journal details removedPage 1 of 4
The handover includes the files and the reason for every change. Use the tabs to view each part.
The audit is issued before any work begins, and authors find it particularly useful because portal error messages rarely identify the actual fault. Four of these six figures were below the required resolution and five were in the wrong colour space, which is typical of a manuscript prepared over two years by several authors.
The editable sources are returned to you. Reviewers often request changes, and editable files allow you to make them without commissioning further work.
Request a sample and we will send a handover prepared for figures like yours, with the same figure types, journal and technical specification.
Redacted sample
Artwork handover
Original research · 6 figures · 3 tables · rebuilt to one journal’s specification. Client names, journal names and identifying details have been removed or changed. On request, we will send a sample prepared for a manuscript like yours.
The audit, issued before any work began
Portal error messages rarely identify the actual fault. This table shows the checks that the six figures failed.
| Check | Result | Detail |
|---|---|---|
| Resolution | 2 of 6 pass | Four below the floor at reproduction width; two were screen captures at roughly 96 dpi. |
| Colour space | 1 of 6 pass | Five supplied in RGB where this journal prints CMYK. One relied on a red–green contrast with no second cue. |
| Type size | 3 of 6 pass | Three carried axis labels falling below 5 pt once scaled to a single column. |
| Line weight | 4 of 6 pass | Two used hairlines that break up in print. |
| Labelling | 4 of 6 pass | Two micrographs had no scale bar; one figure had no units on the y axis. |
| Patient identifiers | 1 flagged | A clinical image retained the acquisition date and institution in its metadata. |
| After rebuild | 6 of 6 pass | All six clear the journal’s stated requirements and the portal check. |
What was done to each figure
| Figure | Work |
|---|---|
| F1 | CONSORT flow diagram built from the participant numbers in the text, reconciled against the results section. Vector. |
| F2 | Kaplan–Meier curves rebuilt from source data at 600 dpi line art, with a numbers-at-risk table added beneath. |
| F3 | Forest plot converted to CMYK TIFF at 300 dpi; marker sizes made proportional to weight. |
| F4–F5 | Multi-panel micrographs: scale bars added, panel letters set in one face and size, brightness corrected across the whole frame. |
| F6 | Mechanism schematic redrawn from a hand sketch as editable vector art, with a colour-blind-safe palette that reads in greyscale. |
Prepared, never manipulated. Every adjustment was applied to a whole panel. Nothing was removed, added, spliced or enhanced in part. Where a figure could not be corrected without crossing that line, we informed the client and rebuilt it from the source data instead.
Files delivered
- Six figures as TIFF and EPS, named for upload
- A single PDF of all figures at printed size, for circulating to co-authors
- Editable AI and SVG for every rebuilt figure, owned by you
- Three tables formatted to the journal’s layout rules
- Captions drafted or checked against each figure
- This audit, and a note of what was set against which instruction
Free reformats to the same journal for 60 days from delivery.
Prepared by Pubrica. Pubrica is a trading name of Guires®, registered in England, Wales and India.
Download this as a PDFBenefits
Benefits of Journal-Compliant Figure Preparation
Pubrica’s specialists handle the technical preparation, so your figures are not rejected for reasons unrelated to your research.
Pricing
Scientific Artwork and Visual Product Pricing
All Pubrica visual products are priced on this page, with no quote form required. Figures are priced per image, so a manuscript with three figures costs a third of one with nine, and all prices below include free reformats to the same journal for 60 days.
Services and prices
Figure formatting
An existing figure brought to the journal’s resolution, colour mode, type size and file format
$15
per image · 2 a day
Artwork enhancement
Correction and rebuilding of a figure that is close but will not pass the upload check
Included
with formatting

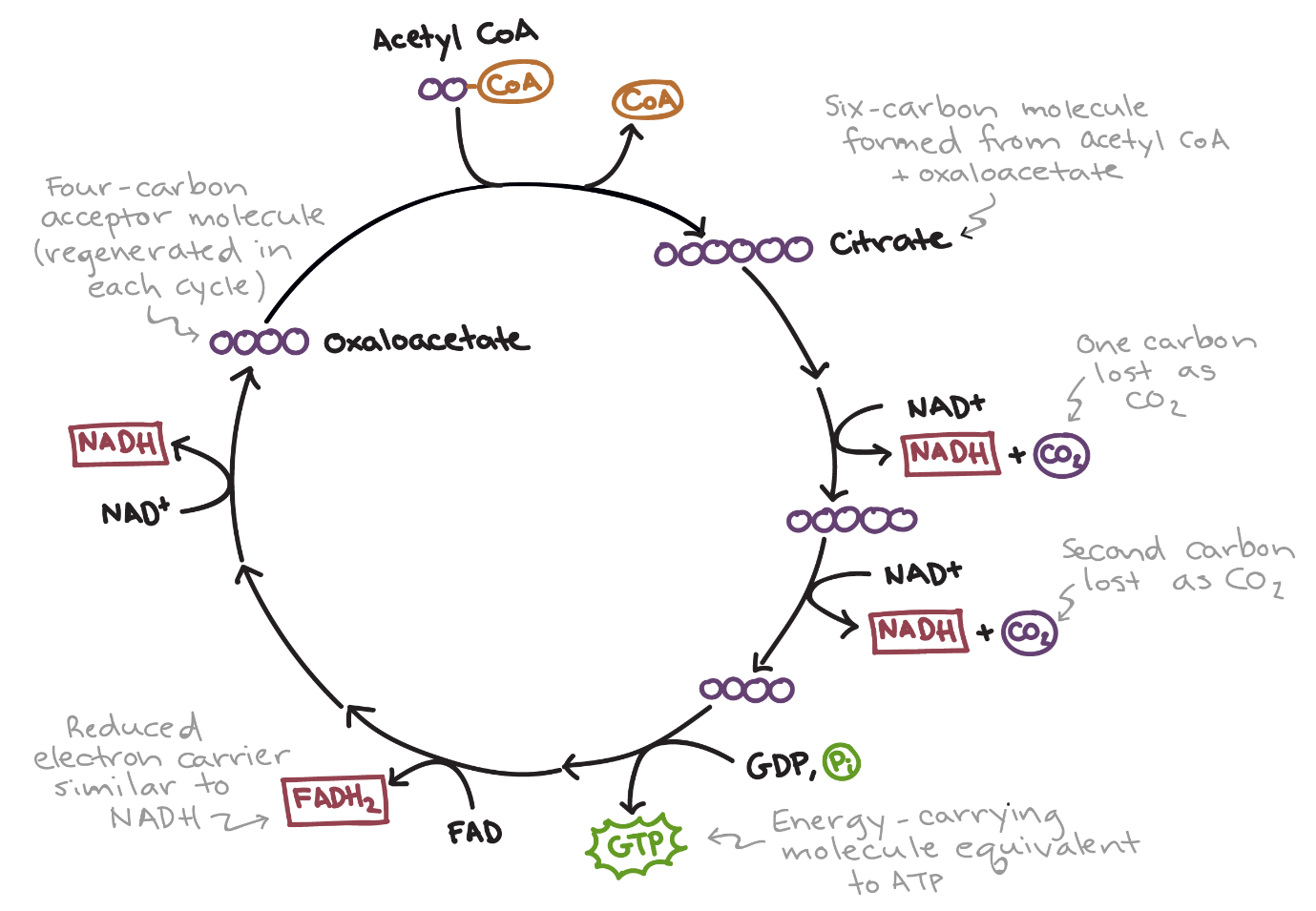

Illustration creation

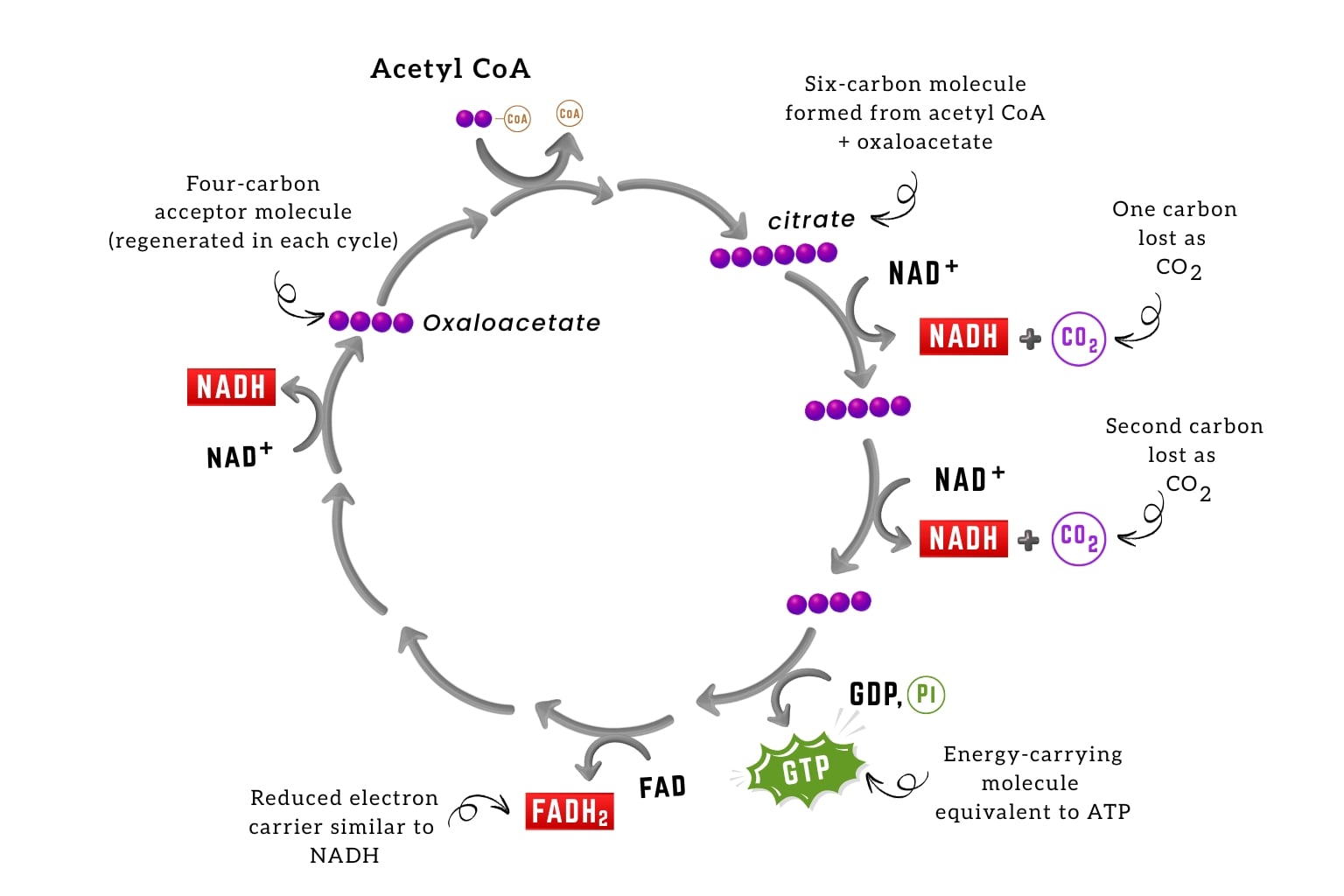

A schematic, mechanism diagram or anatomical illustration drawn from scratch as vector art
$200
5 working days
Graphical abstract · AI-assisted
Built from your figures and data with our own tools, then checked and corrected by a designer
$70
2 working days
Graphical abstract · expert
Designed from the paper by a scientific illustrator, to the journal’s aspect ratio and pixel spec
$149
4 working days
Infographic
A standalone visual summary for a report, a press release or a conference screen
$400
7 working days
Journal cover art
A cover image proposed to the journal, mocked up in that journal’s own cover layout
$500–800
6–9 working days
Retainer arrangements for frequent publishers. Groups and departments that produce figures for several papers a year can arrange a retainer rather than paying per image. A retainer provides an agreed monthly allocation, a designer familiar with your visual conventions and consistency across the group’s publications. Prices depend on volume; tell us approximately how many figures you need each year and we will provide a quote.
Included with every figure. Editable vector source files, so you can modify the artwork and reuse it for another journal; a QR code and DOI in any infographic or graphical abstract, linking readers to your paper; and a short social media kit with a caption, hashtags and SEO alt text for the version you share online.
Copyright remains with you. You own the artwork outright, including the source files. Nothing you send us and nothing we create for you is used to train any AI model, and we will confirm this in writing if your funder or institution requires it.
Packages
Artwork Preparation Packages
Priced at $15 per image, at two images per day. The packages differ in the depth of work and the turnaround time.
Silver package
For first submissions with broadly sound figures
$15per image
Turnaround 5–7 business days
Free reformats for 60 days. Edits and reformats to the same journal are free for two months after delivery.
- ✓Figure formatting and resolution correction to the journal’s stated requirements
- ✓Type size, spacing and file dimensions optimised for legibility at printed width
- ✓Export in the accepted file formats, named for the submission portal
Optional: additional revision rounds, figures and illustrations.
View a sample Select SilverGold package
For specialty and mid-tier journals
$15per image
Turnaround 3–5 business days
Free reformats for 60 days. Edits and reformats to the same journal are free for two months after delivery.
- ✓Everything in Silver, plus colour mode conversion, font embedding and stroke-weight normalisation
- ✓Layout and labelling reset to the journal’s specific template, with panel letters, units and scale bars checked against the manuscript
- ✓Metadata embedded, patient identifiers stripped, and compression tuned to the portal’s upload limits
Optional: complex or large data sets and graphical abstract creation.
View a sample Select GoldPlatinum package
For high-impact journals and conferences
$15per image
Turnaround 2–3 business days
Free reformats for 60 days. Edits and reformats to the same journal are free for two months after delivery.
- ✓Everything in Gold, across a full figure set of graphs, charts, schematics and infographics
- ✓Built to publisher-specific house requirements, including the stricter specifications at titles such as Nature, The Lancet and JAMA
- ✓Optimised for print and screen from one vector source, with editable files returned to you
Optional: multi-panel figure assembly, scientific visualisation and infographic design.
View a sample Select PlatinumQuality Assurance
Service Commitments Across All Packages
These commitments apply to every figure Pubrica prepares.
Our revision commitment
Revision Support Until Agreed Requirements Are Met
We do not offer refunds. Instead, we continue working on the figures until the agreed requirements are met, within the agreed scope, because further work on the problem is more useful to you than a refund.
01
Unlimited revisions within the agreed scope
There is no cap on revision rounds for 365 days from delivery, within the agreed scope.
02
Corrections at Our Cost
If work is returned because of something we set, filed or wrote, we correct it free of charge, within the agreed scope.
03
Delivery on the Agreed Date
We quote a delivery date we can meet. If a deadline is at risk, we tell you early rather than on the day.
04
Your Decisions Remain Yours
We advise, give our view and tell you clearly when we disagree, but decisions about what is published in your name are always yours.
Service limitations. We cannot guarantee acceptance, because that decision belongs to the journal’s editor. Unlimited revision covers the work we were engaged to do; new analyses, a new study or a different manuscript are new work. Revision support runs for 365 days from delivery.
Free Reformats for Sixty Days
Edits and reformats to the same journal are free for two months after delivery, within the agreed scope. Reviewers request changes to figures more often than to any other part of a manuscript, so these changes do not require a second invoice.
Image Preparation Without Manipulation
Adjustments are applied to a whole panel, never to part of one. We do not remove features, splice lanes or enhance regions, and if a figure appears to have been altered before it reached us, we will tell you.
Editable Sources Returned
Every rebuilt figure is returned as editable vector artwork as well as print files. You own the artwork, so you can make later changes and reuse the figure for another journal.
NDA, Encryption and Patient Privacy
Pubrica works with researchers in India, the United Kingdom and Europe, North America, Asia-Pacific, the Middle East, Africa and Latin America. Every designer and editor works under an NDA, files are encrypted in transit and at rest, and material is handled under GDPR. Clinical images are checked for identifiers in the image and the file metadata before delivery, and we ask you to confirm that patient consent covers publication before a recognisable image is used.
Client Stories
Client Feedback on Artwork Preparation
Clients describe the figure problems our artwork preparation resolved.
“They turned my raw clinical diagrams into figures that met the journal’s artwork standards exactly. I had been through two rounds of upload errors before I asked for help.”
“The graphical abstract and the illustrations were built from scratch. The editors commented on the clarity of the figures, which had never happened to me before.”
“My imaging series needed resolution work I could not do myself. What came back were TIFF files at the right resolution and colour space, and the submission went through first time.”
FAQs
Artwork Preparation FAQs
If you are unsure whether your figures will pass the upload check, please ask an expert. No quote is required.
Build the figure as vector art wherever the content allows, including graphs, schematics and flow diagrams, because vector files scale to any width without loss of resolution. For photographs and imaging panels, which must be raster images, export at 300 dpi or more measured at the final printed width rather than the size on your screen. Then check the type size and stroke weights at that printed size, because that is where most otherwise correct figures fail.
TIFF, EPS, PDF and high-quality JPEG are accepted by almost every journal, and some also accept PNG. In general, line art should be supplied in a vector format such as EPS or PDF, and photographs in TIFF. JPEG is acceptable for photographs but not for graphs, because its compression degrades the sharp edges of text and lines. Your journal’s instructions specify the required format for each type of content and take precedence.
Enlarging it does not work, because the detail was never recorded and upscaling generates pixels rather than recovering them. The effective approach is to rebuild the figure: a chart is redrawn from its underlying data, a schematic is traced as vector artwork and a sketch is redrawn. For photographs and imaging, the solution is to return to the original full-resolution capture, which is usually still available on the instrument or in the imaging archive.
Typically 300 dpi for photographs and halftones and 600 dpi or higher for line art and graphs, in each case at the width the figure will be printed at. That width is commonly around 85 mm for a single column and 176 mm for a double, though it varies by publisher. A figure that is 300 dpi at 200 mm is only 128 dpi once it is scaled down to 85 mm, which is why the measurement has to be taken at reproduction size.
Use whichever the journal specifies. Print production uses CMYK, and online-only journals generally accept RGB. Conversion affects colour: saturated blues, greens and oranges fall outside the CMYK gamut and shift visibly, so a figure converted without checking can appear duller or differently coloured than the version you approved. We convert each figure and then compare the result visually with the original.
Most journals set a minimum of about 6 to 8 pt measured at final printed size, and some state the point size explicitly in their instructions. A practical test is to print the figure at its final width and read it at arm’s length. Plotting software defaults are usually sized for slides rather than journal columns, so text that looks large on screen can fall to 3 or 4 pt once scaled. This is the most common legibility problem we see.
Colour should never be the only feature that distinguishes two data series. Around one in twelve men has a red–green colour vision deficiency, so the most common scientific palette is also among the least readable. Add a second cue, such as line style, marker shape, direct labelling or a hatch pattern, and choose palettes that remain distinct in greyscale, because many readers print in black and white. An increasing number of journals now require this.
Adjustments applied evenly to an entire panel, such as brightness, contrast and colour balance, are preparation, provided they do not obscure or remove anything present in the original. Any adjustment applied to part of an image, any removal or addition of a feature, and any splicing of lanes or fields without a clear dividing line and a note in the legend is manipulation. Journals run forensic screening on submitted images, so you should always keep the unprocessed original.
Written informed consent for publication, obtained specifically for that purpose, and a statement in the manuscript confirming it. Obscuring the eyes does not make a face anonymous, and journals no longer accept it as sufficient. Identifiers can also appear in less obvious places, such as a wristband or tattoo in the frame, a name or date embedded in a scan and, most often, the file metadata, which remains with the image unless it is removed.
A single image summarising the study’s findings, increasingly requested at submission and used by journals on their indexing and social channels. It is not a reused figure from the paper: it has its own aspect ratio and pixel dimensions and must be legible at thumbnail size on a phone. The instructions for authors state whether one is required; where it is optional, it is usually worthwhile, because many readers will see it before the paper itself.
